Hexagon Vero VISI 2024.3 (2448)

User Interface Enhancements
VISI 2024.3 brings upon a suite of User Interface enhancements to improve the user experience. With the multi-selection icon now easily accessible from the main graphics screen, users can swiftly pre-select environments. A new field has been introduced to display the count of selected items, providing real-time tracking and feedback. Additionally, users can now opt for dynamic full highlight for either faces and bodies or exclusively for edges, as per their needs. The layer manager's improvements further streamline user experience, making layer management more user-friendly. These enhancements allow quicker access to the system functionalities, render an easy-to-comprehend interface, and provide a more interactive and efficient workflow.


What's New in CAD

Mate and Motion Study Improvements
Automation of constraint assignment to created or modified geometries significantly cuts down your design timings and aids in a simplified, streamlined design process fostering productivity and affording you more time to focus on creative and critical aspects of your work.


Electrode Initial Refactoring
This enhancement imparts robust control over electrode management. Experience the convenience of directly working with solid groups and the management of mirrored electrodes.


Topological Mesh Management
Allow0073 the handling of Parasolid PK Mesh, treating meshes as solid or sheet bodies. This advancement revolutionizes the way you work with meshes, providing an improved and efficient design workflow, and ultimately enabling the creation of more complex and versatile designs.


One-Click Surface Solution Enhancement
Produce professional and superior-quality surfaces from scanned parts effortlessly using our automatic surfacing feature from APEX.


Export of Instances and Bodies as Part Document
Easy export of assemblies and bodies as a part document, providing more flexible and consistent output across various formats


What's New in Mould and Die

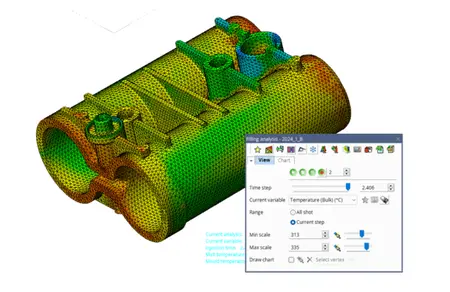

Filling Phase Calculation Tuning
The improved filling phase calculation tuning feature offers superior flow pattern determination for accurate results. This advancement enhances your crafting capabilities, enabling you to deliver quality products, and ultimately, drive customer satisfaction


Mould Warpage Compensation
Achieve deformation compensation compared to the original model, with the automatic generation of the compensated solid model and associated mesh.


Multi-Stage Simulation Solution
Significantly reduces the need for tryouts and design errors, facilitating a seamless transition between different stages of die progression. Moreover, the feature aids in the rapid completion of your projects, ultimately enhancing productivity and delivering superior final products.

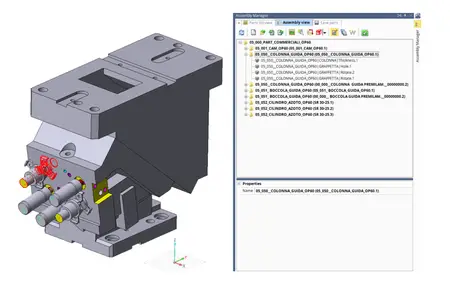

Mould and Progress Catalogues
Stay updated with the market demands; most of the catalogues have been updated, with the addition of new elements, assemblies, and reviewed dimensions.


What's New in CAM

Graphical Feedback
Get instant feedback about which geometry is prepared for manufacturing through a dedicated color scheme, reducing the need for clicks and buttons.


Face List Auto-Creation
Facilitate the process of creating face lists with the automatic extraction based on their defined color, reducing the chances for selection errors.


Enhanced UI for Operation Parameters
Experience a consolidated and simplified UI for operations. Only the parameters relevant to the main strategy selected are visible, reducing unnecessary clicks.


Toolpath – Geometry Auto Referencing
Keep track of which operations have been added to specific geometry directly from the Model manager, reducing the chance of errors or unwanted changes to the geometry.


Stock Analyser
Improve your machining cycle with the improved stock analyser, identifying areas with residual material after a single toolpath.


Nested Features
Increase efficiency with this new option in our 2.5 axis pocketing. By automating the ordering of machining nested group features, we reduce lift-offs and rapids.

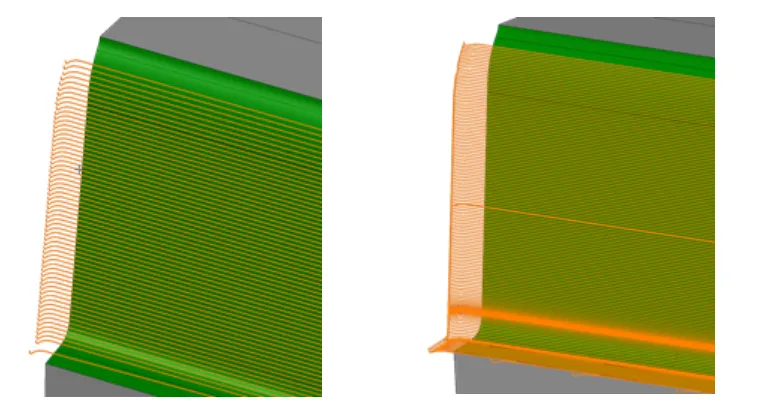

3 Axis Toolpath
Brings the newest version of the CAM-Engine to your fingertips. Benefit from a unified user experience for roughing, waveform, and global-roughing under one intuitive strategy. The feature provides reliable extension of toolpaths, especially when using face lists for waterline and raster. Enjoy the added efficiency of adaptive stepdown for waterline, cross machining for raster, and corner re-machining with new slope management and direction method.


3 to 5 axis auto tilting
Offers improved command over the tool axis while allowing you to calibrate surface sensitivity for specific strategies. Elevate precision with the ability to control the tool holder’s influence and accurately check for collisions. Reap the benefits of an exceptional point distribution that fosters a swift, dynamic toolpath, and faster calculations, catapulting efficiency and productivity in your operations.


5 Axis Toolpath
Provides instant feedback on which geometry is prepared for manufacturing and differentiates the machinable, protected, driven, or guided geometry. With graphical feedback available without accessing the operation UI, you can reduce clicks and buttons to streamline your process significantly. The standard visualization is always available, ensuring intuitive navigation and increased productivity
