Autodesk Navisworks Manage 2025 Update 5

Autodesk has released Navisworks Manage 2025 Update 5. This release has been focused on addressing product issues and a particular focus to enhancements for users and workflows.


Enhancements in Navisworks 2025 Update 5
Navisworks 2025 Update 5 includes the following enhancements:
- Improved performance when opening certain IFC files (NW-60126).

Fixes in Navisworks 2025 Update 5
Navisworks 2025 Update 5 includes the following fixes:
Revit
- Nested families from Revit files are now displayed under the correct parent family when opened in Navisworks (NW-60961).
- Shared parameters from Revit are now displayed correctly in Navisworks (NW-60861).
- Fixed an issue causing elements in NWC files exported from Revit to be listed under the wrong category in Navisworks (NW-60627).
NWC, NWF, and NWD files
- Color overrides are now correctly maintained in NWF files when objects are transformed in the corresponding NWC file (NW-59437).
- Fixed an issue where geometry would disappear when combining an NWC with other files and saving to NWD (NW-61050).
- When NWC files are exported from MicroStation, the geometry associated with Construction class elements is now displayed correctly (NW-61191).
Rendering
- Changing the XYZ coordinates on the Autodesk Rendering dialog > Material Mapping tab now correctly changes the position of the texture (NW-60837).
- The Viewpoint tab > Render Style panel > Lighting drop-down list > Full Lights option now works correctly for all system locale settings (NW-61456).
DWF files
- Fixed an issue where exporting NWD files to DWFx resulted in missing geometry (NW-61472).
- Fixed an issue causing Navisworks to close unexpectedly when loading DWFx files (NW-61550).
Clash Detective
- Fixed an issue where the color indicators on the Clash Detective > Results tab weren't displaying correctly (NW-61332).
IFC files
- When exporting linked IFC models from MicroStation to NWC format, custom colors are now supported and the color used in the linked file is respected (NW-61207).
Links
- Hyperlinks are now correctly rendered when attached to instanced geometry (NW-61248).
General
- Fixed an issue where having the Vault Add-in browser pallet open when opening an NWF file from Vault was causing Navisworks to close unexpectedly (NW-54930).
- Fixed an issue where editing a custom property value was causing Navisworks to close unexpectedly (NW-61078).
- The Resize Floor option now works correctly when working with Factory Design Utilities layouts in Navisworks (NW-59878).
- Geometry is no longer incorrectly ghosted or missing contours when using the Options Editor dialog > Interface node > Display page > Autodesk subpage > Screen Space Ambient Occlusion option and the Options Editor dialog > Interface node > Sectioning page > Capping option in combination (NW-60660 and NW-61373).
- Fixed an issue causing some PDF files to be shown as a blank screen when loaded into Navisworks (NW-60913).
- Pipe colors now appear as expected when using the Options Editor dialog box > Model node > Performance page > Optimize on Load option (NW-61162).
- AVEVA properties are now correctly displayed in the Properties window (NW-61339).
- Fixed an issue preventing RVM files containing v1.2 primitives from loading (NW-61979).
- Dashed lines that are shown when using the Measure Tools now work correctly with different regional settings (NW-61367).
- Navisworks now correctly handles loading PDF files that are password secured (NW-59975).

Autodesk Navisworks is a comprehensive project review solution that supports 5D simulation, coordination, analysis, and communication of design intent and constructability. Multidisciplinary design data created in a broad range of Building Information Modeling (BIM), digital prototype, and process plant design applications can be combined into a single, integrated project model. Comprehensive schedule, quantification, cost, animation, and visualization capabilities assist users in demonstrating design intent and simulating construction, helping to improve insight and predictability. Real-time navigation combines with a review toolset to support collaboration among the project team. Entire project models can be published and viewed in NWD and DWF file formats to provide valuable digital assets from design through construction. Interference management tools help design and construction professionals anticipate and avoid potential problems before construction begins, minimizing expensive delays and rework

What's new in Navisworks 2025


Learn about new features in the latest release of Autodesk Navisworks.
Autodesk helps people imagine, design and create a better world. Everyone—from design professionals, engineers and architects to digital artists, students and hobbyists—uses Autodesk software to unlock their creativity and solve important challenges.

Owner: Autodesk Inc.
Product Name: Navisworks
Version: 2025 Update 5
Supported Architectures: x64
Website Home Page : www.autodesk.com

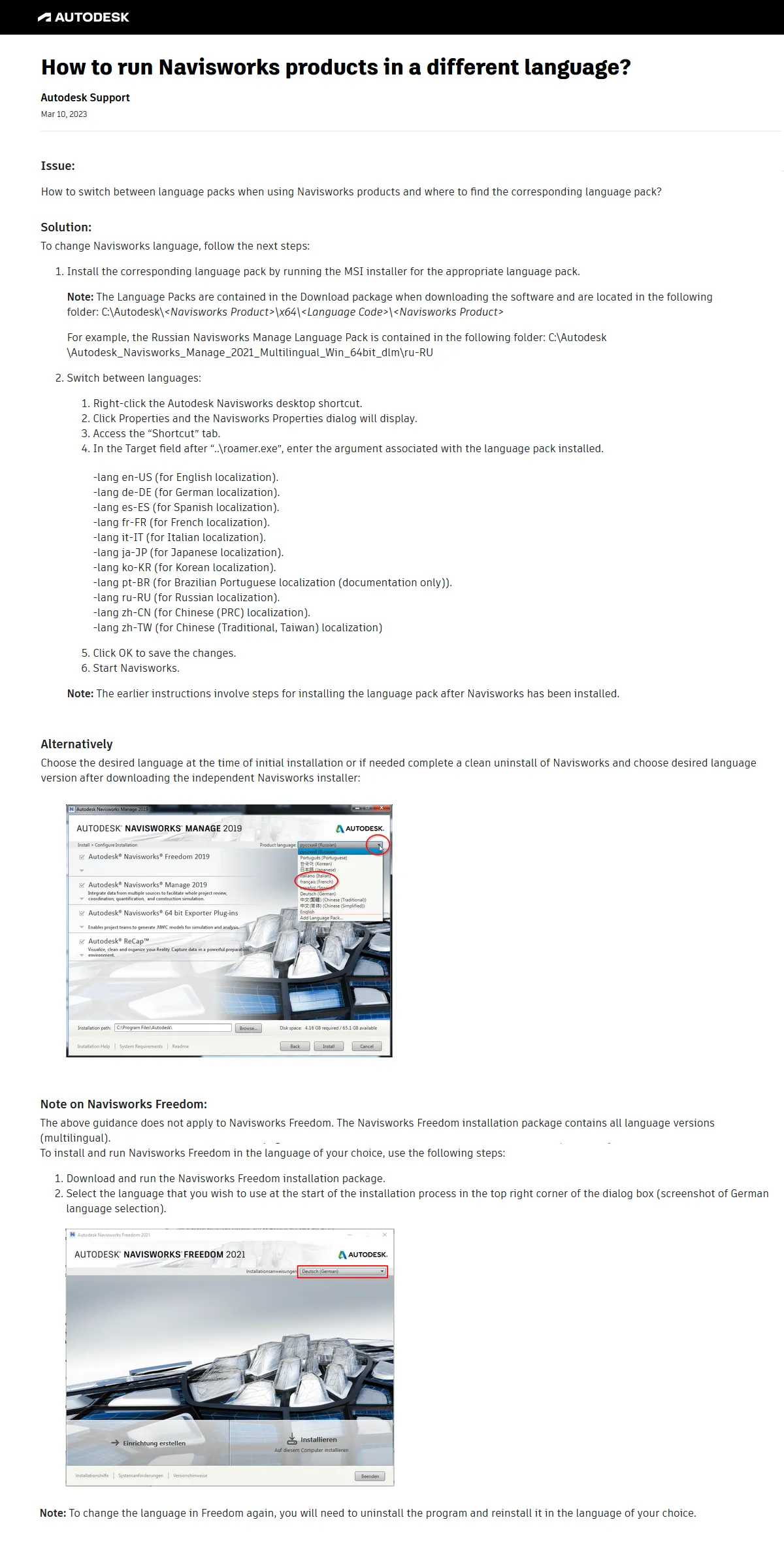

Languages Supported: multilanguage **

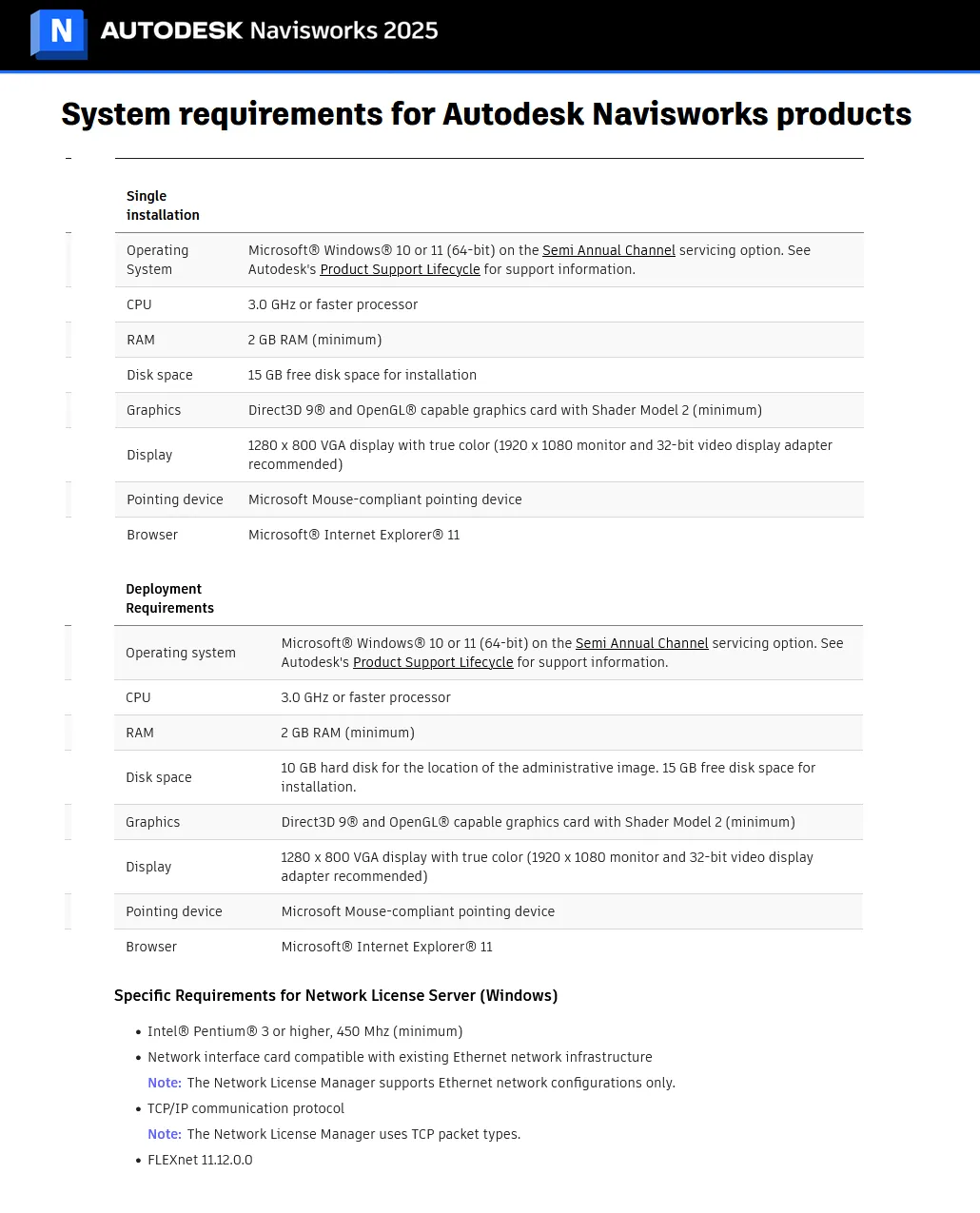

System Requirements: Windows **
Software Prerequisites: pre-installed Autodesk Navisworks 2025.0 and above
Size: 330.6 mb
